Seitech Storage Racks
For
Sailboats, Row Boats,
Pedal & Paddle Boats
Outline Dimensions
Stationary, and Roll a Round Storage
Racks for Sailboats
Seitech Storage Racks are made of aluminum, engineered
composite joints and stainless
steel fasteners. They are available in fixed, wall mount, and with
rolling casters. Ideal for storage or display units. Racks ship UPS.
* A size sailboats include - Laser, Sunfish, Opti or
up to 58" beam
* B size sailboats include - Laser 2, Vanguard 15,
420, up to 68" beam
These Racks can be Easily Modified to Accommodate
Pedal Boats, Paddle Boats, and Row Boats

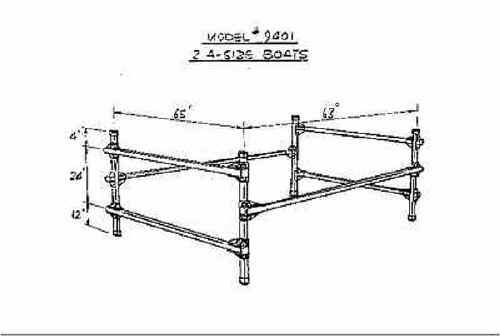

Current Model Number 72000
Seitech Sailboat Rack for 2 Sunfish, Laser, Opti or Similar Sailboats

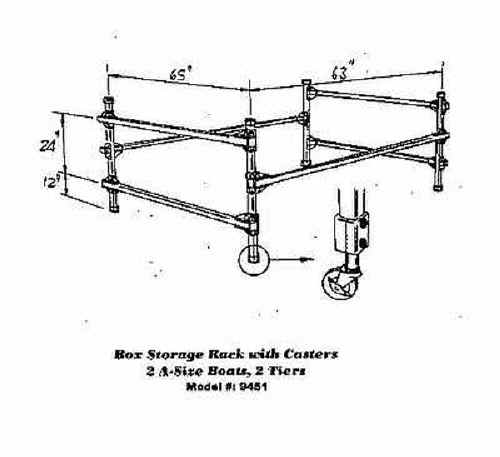

Current Model Number 72000 with Optional Caster Kit
Seitech Sailboat Rack for 2 Sunfish, Laser, Opti or Similar Sailboats
On Roll a Round Casters. Full Wheel Casters are Lockable

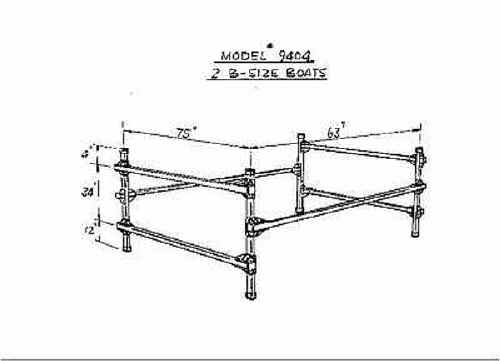

Current Model Number 72003
Seitech Sailboat Rack for 2 Vanguard 15, 420, Laser II or Similar Sailboats

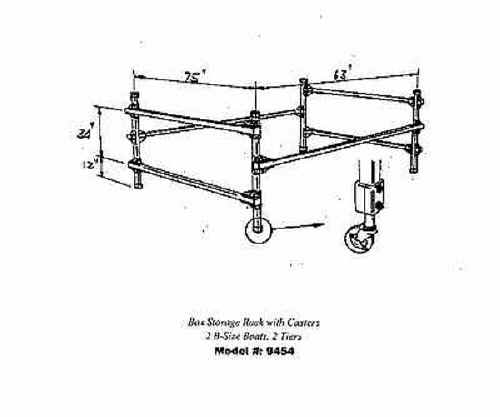

Current Model Number 72003 with Optional Caster Kit
Seitech Sailboat Rack for 2 Vanguard 15, 420, Laser II or Similar Sailboats
On Roll a Round Casters. Full Wheel Casters are Lockable

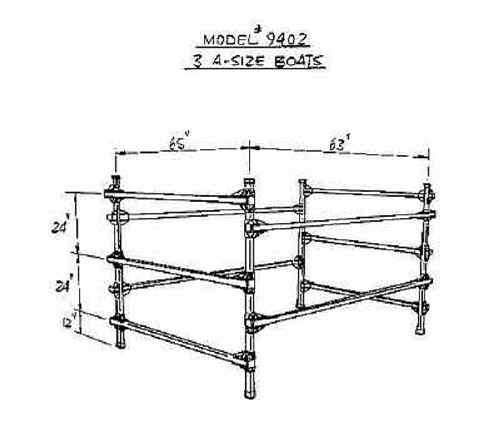

Current Model Number 72001
Seitech Sailboat Rack for 3 Sunfish, Laser, Opti or Similar Sailboats

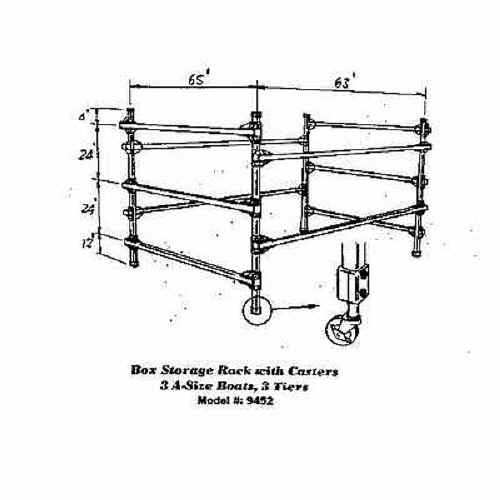

Current Model Number 72001 with Optional Caster Kit
Seitech Sailboat Rack for 3 Sunfish, Laser, Opti or Similar Sailboats
On Roll a Round Casters. Full Wheel Casters are Lockable
Current Model Number 72004
Seitech Sailboat Rack for 3 Vanguard 15, 420, Laser II or Similar Sailboats

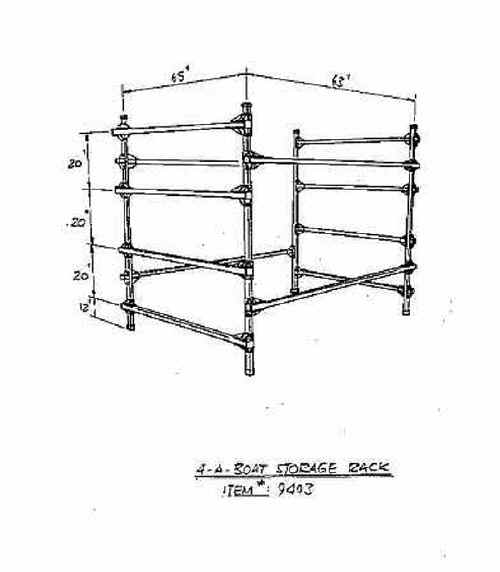

Current Model Number 72002
Seitech Sailboat Rack for 4 Sunfish, Laser, Opti or Similar Sailboats

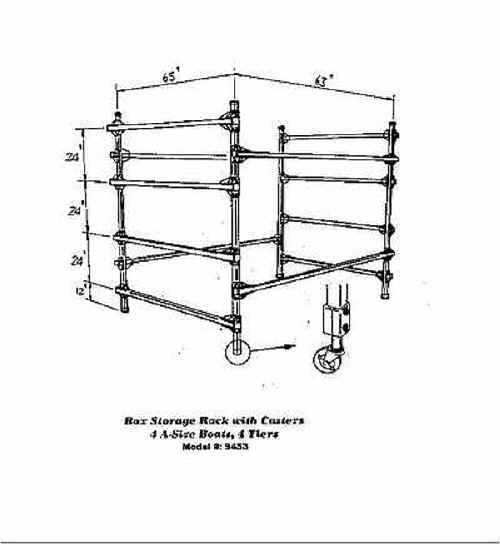

Current Model Number 72002 with Optional Caster Kit
Seitech Sailboat Rack for 4 Sunfish, Laser, Opti or Similar Sailboats
On Roll a Round Casters. Full Wheel Casters are Lockable

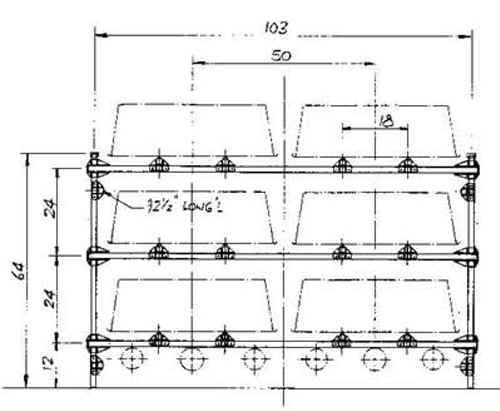

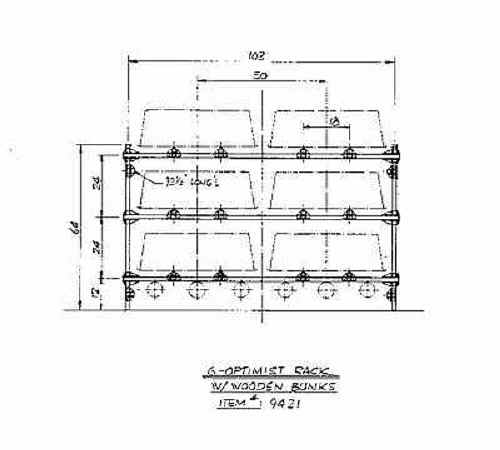

Seitech Model 72006 Rack for 6 Optimist Sailboats
Shown with optional slide bunks and optional tee brackets installed
50" Width per Boat - 103" Overall Width - Depth is 92.5"
Note for 72006 BOX Rack For 6 Opti Sailboats -
This rack designed for use with Slide Bunks. Bunks and Brackets are
additional cost items.
Users may also install their own slide bunks
using locally obtained wood and hardware.

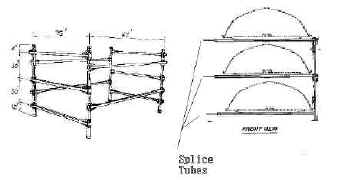

| Extension Racks are available to "Daisy Chain" Racks
together. This lowers the cost per rack significantly, and allows
you to Build Rack Systems from Two Wide to Literally Hundreds
Wide. Start Small and add Racks as you Grow. Contact us for
Pricing |
How To Anchor and Bolt
Down Storage Racks
|
