CastleCraft Trailer Racks
CastleCraft Seitech, Dynamic Racks Convert your existing trailer to a multi-boat
carrier For Small Sailboats, SUP Stand Up Paddle Boards and Other Boats
Add a Rack to carry other Boats above your Current Trailer
| Convert
Your Trailer to a Multiple Boat Trailer |
 |
 |
|
Go from This |
To This |
|
Trailer Rack for 2 Boats is 929.00 + FREE
Shipping (48 USA) |
|
Scroll Down the Page for Other
Sizes , and Pricing |
|
Trailer Conversion Racks Available for Different
Trailers |
 |
|
 |
| Add Multiple Boat Trailer Rack to your existing Trailer
|
|
Already have a Boat Trailer and want to carry another Boat above? |
|
|

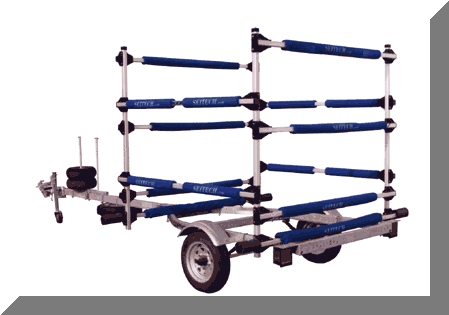

Trailer Rack for carrying Two Boats above a boat on a
trailer Optional Rack Pads shown |
|
|
Modal CC-O-U-TWO
Shown - For Two Boats Upside down on bars above boat
|
|
Dollies Can Be Carried With Boats On Trailer Racks |
|
|
|
|
| 20014 Three Opti Rack Has Room Between Bays for Three
Boats and Three Dollies |
|

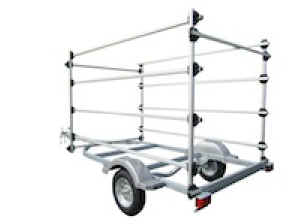

Eight Optimist Side Loading Rack Loads Boats Two Boats
Per Bay, Loaded Sideways |
| |
|
|
|
|
|
|
| Dolly Shown Carried On Top Of Boat |
|

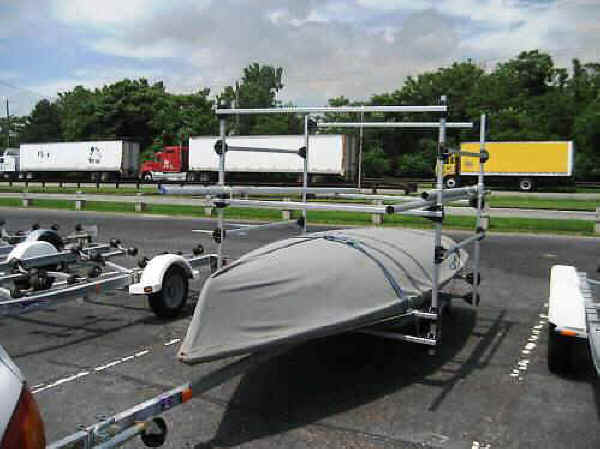

Two Laser Rack With Dolly On Top Boat |
| |
|
|
|
|
|
|
Overhead Rack System Shown
With Four Optis Loaded Sideways
Above Inflatable Boat |
|
Rear View Of Boat Rack With Dolly Loaded On Top Of Boat
On Top Bay |
|
Add an Overhead Level Trailer Conversion Rack to
Your Trailer |
 |
|
 |

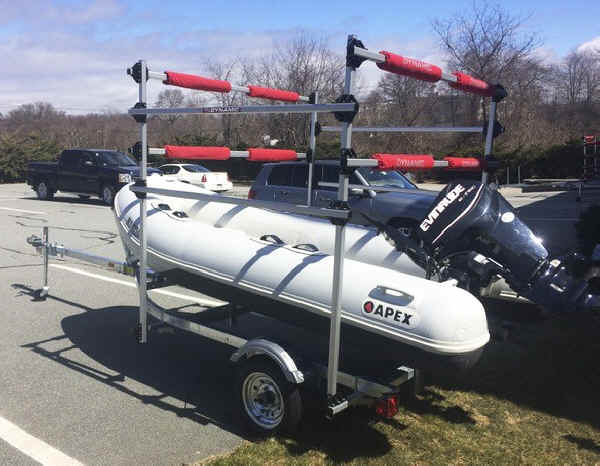

| Overhead Trailer Rack to carry Two Opti Boats Crosswise above a
standard boat on the bottom |
|

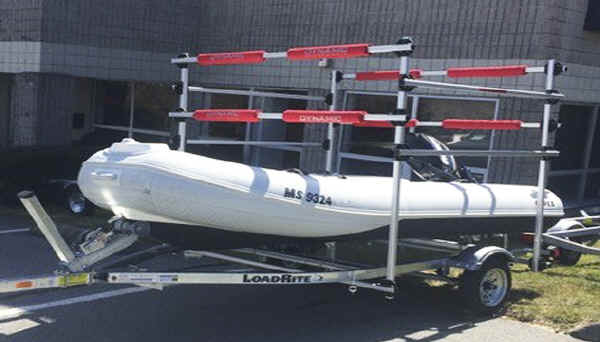

Already have a Boat Trailer and want to carry another Boat
above? Two Level Rack Shown |
|
Mount Racks on Different Types of
Trailers |
 |
|
 |

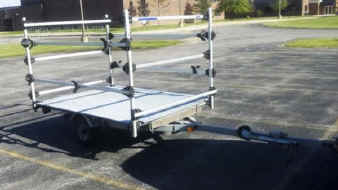

| Typical Custom Three Boat Rack Used to Convert a
Flatbed Trailer for Sailboat or Boats |
|
Custom Conversion Rack Setup - for Use on a typical boat
trailer |
|
How to Measure your Trailer.
Option 1: Specify the trailer make and model.
OR
Option 2: Provide the “Trailer Measurement Form"
Many of the dimensions on the trailer measurement form aren’t absolutely necessary (especially for a simple box rack).
All that is needed:
a. picture of the trailer If not available -Describe- i.e. Does it look like the Diagrams Layout?
b. The trailer frame width between fenders. "A" on Diagram
c. Total length of trailer. "F" on Diagram
|
|

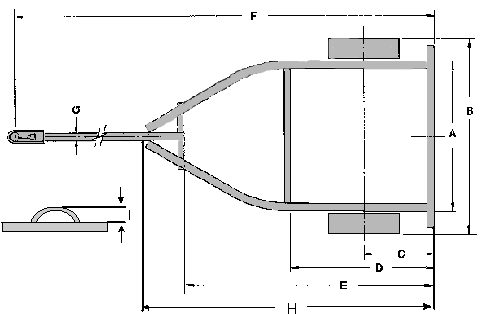

Diagram
References |
A- width of the trailer frame
B- width from outside fender to outside fender
C- from axle to back of rear channel
D- from center bar to back of rear channel
(some trailers do not have this center bar)
E- from forward cross channel to back of rear channel
F- overall length from ball coupler to back of rear channel
G- width of tongue
H- from start of side channels to back of rear channel
I - height of fender top over frame channel
J - length of rear channel, if applicable
K- width of side frame
|
|
Minimum "A" Width - Width of Trailer between Fenders
Small Boats (Laser, Sunfish, etc) - no less than 44"
Large Boats (420, JY15, etc) - no less than 52"
*due to possible overbalancing while turning or loading
|
|
|
| Trailer attaches to Two
Lower Cross Bar Sections and Brackets. These Cross Bars are
fixed position and the same width as upper Box Rack.. This allows
easy attachment with the Optional 3" x 6" U-Bolts. Due to
the Wide Variety of Trailers, this Rack MAY
REQUIRE other attachment Hardware to fit your Trailer. However, Common Brackets and Attachments, can be
Found in Hardware and Automotive Parts Stores. Installing this
Rack Does Require A Fair Amount of Mechanical Knowledge.
"A" Size Racks are typically 65 inches wide
(designed for boats 58" wide) and Fore to Aft Spacing is typically 63 inches.
Actual size may vary depending on boat and
trailer models.
"B" Size Racks are typically 75 inches wide
(designed for boats 68" wide)
and Fore to Aft Spacing is typically 63 inches. Actual size
may vary depending on boat and trailer models.
Carefully measure your trailer to make sure rack
will clear Wheel wells, Fenders and other attachments our your trailer.
|
PRICES
|
Trailer Conversion Racks for Sailboats
Also For SUP Stand Up Paddle Boards,
Row Boats, and other Boats
All
Sailboat Racks have unpadded rails
optional rail pads are available
|
| |
|
|
| STANDARD TRAILER CONVERSION RACK |
|
|
| MODEL - |
PRICE |
SHIPPING |
|
CC-TB2
Box - Two Sailboats
Equivalent to: 772000, 72003 & 20012
|
$ 929.00 |
FREE Shipping (48 USA) |
|
CC-TB3
Box - Three Sailboats
Equivalent to: 72001,72004 & 20014
|
$ 1349.00 |
FREE Shipping (48 USA) |
CC-TB4A
Box - Four Sailboats
Equivalent to: 7200 & 2000X |
CALL |
|
CC-TB5B Box - 5 A* Size Sailboats
3
High, 2 on Sides for Sunfish & Laser Style Bots |
$ 1370.00 |
FREE Shipping (48 USA) |
CC-TB8O
BOX Rack For 8 Optimist Sailboats - Equivalent to: 20022
Has 4 Tiers - carries boats sideways
4 Opti Boats High x 2 Opti Boats Wide |
CALL |
FREE Shipping (48 USA) |
| OVERHEAD - TRAILER CONVERSION RACK
- Over Under Style Add a Level above your existing boat on trailer. |
|
|
| MODEL - |
PRICE |
SHIPPING |
CC-O-U-L
One Level Overhead - Light Duty
For Kayaks, SUP to be carried above your boat |
$ 929..00 |
FREE Shipping (48 USA) |
CC-O-U-HD
One Level Overhead - Heavy Duty
For Larger Boat to be carried above your boat |
$ 1075.00 |
FREE Shipping (48 USA) |
| CC-O-U-TWO
Two Level Overhead - Heavy Duty. For Two Boats
to be carried above your boat |
$ 1240.00 |
FREE Shipping (48 USA) |
| Large Custom Rack Systems - Call |
|
|
| OPTIONS |
|
|
CC-RP2
Optional Rack Pads - Set of Two - 24"
Equivalent to: 78500 & 80030 Red Color Only |
$ 49.95 |
FREE Shipping (48 USA)
Only when ordered with rack |
CC-U-Bolt-4 Set
of Four U- Bolts (3" X 6" )
Equivalent to: 70019
(zinc plated steel) |
$ 79.95 |
FREE Shipping (48 USA)
Only when ordered with rack |
CC-Strap-15 Set of Two 15' Tie
Down Straps
Equivalent to: 80014 |
$ 28.95 |
FREE Shipping (48 USA)
Only when ordered with rack |
Weight Capacity for
Box Racks is 300 Lbs per level - Example - 3 High Rack Total Capacity is 900 Lbs
NOTE: Weight Capacity
for CC-O-U-L
One Level Overhead - Light Duty Rack is 150 Lbs.
Small Racks fit Laser, Sunfish and
similar Boats up to 58" beam
Large Racks fit JY15, Vanguard 15, 420,
MXRay, and similar Boats up to 68" beam
Note: Add an extra tier to allow longer spars to be
carried on top tier of rack
(i.e. have two boats order a three boat rack for extra spar storage
space )
|
Trailer Rack Attachment with Optional U-Bolts |
 |
 |
 |
Cross Bars can be attached
to Trailer with U-Bolts |
Typical Attachment on Front
of Trailer "A" Frame
|
Optional U-Bolt is
3" Wide x 6" High |
|
Optional Equipment for Trailer Racks |
 |
|
 |
| Optional Rack pads are 24" long -
Sets come in Pairs Order 2 Sets Per Boat (Front & Rear) colors vary. |
|
Set of Two 15 foot Tie Down
Straps with Protective Pad under Buckle |
|

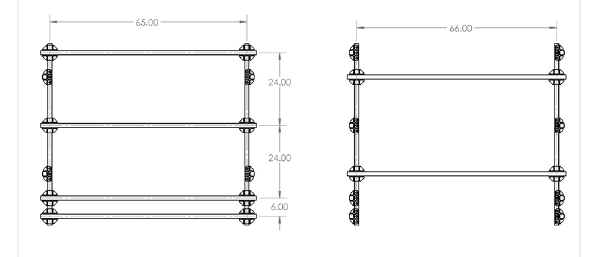

Typical Dimensions of a Three Boat Rack
for Small Boats - Laser, Sunfish Etc |
|
Width =
65" Fore to Aft =
66" Vertical Bay Height
= 24" |
|
NOTE: Dimensions for your Boat
Rack may vary due to Your Trailer Dimensions |
 |
| Front or Rear View of Rack |
|
Side View of Rack |
| All Dimensions can be customized to your
Specifications |
|

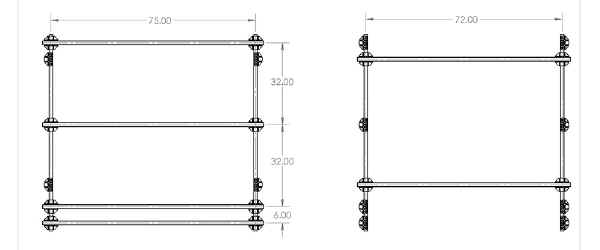

Typical Dimensions of a Three Boat Rack
for Large Boats - 420 , JY15, Etc |
|
Width =
75" Fore to Aft =
72" Vertical Bay Height
= 32" |
|
NOTE: Dimensions for your Boat
Rack may vary due to Your Trailer Dimensions |
 |
| Front or Rear View of Rack |
|
Side View of Rack |
| All Dimensions can be customized to your
Specifications |
|

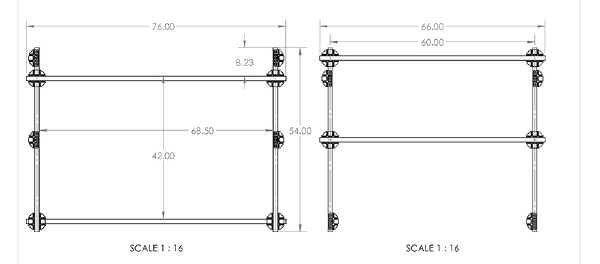

Typical Dimensions of a
Heavy Duty Boat Rack Over an Existing Boat on It's Trailer |
|
Width =
76" Fore to Aft =
72" Vertical Bay Height
= 42" |
|
NOTE: Dimensions for your Boat
Rack may vary due to Your Trailer Dimensions |
 |
| Front or Rear View of Rack |
|
Side View of Rack |
Bottom Cross Bar on an Over Head Rack
attaches to the under side of the trailer frame
This allows the bottom boat to launch with out any obstruction
All Dimensions can be customized to your Specifications |
Weight Capacity for
Box Racks is 300 Lbs per level - Example - 3 High Rack Total Capacity is 900 Lbs
NOTE: Weight Capacity
for CC-O-U-L
One Level Overhead - Light Duty Rack is 150 Lbs.
|
