Multipurpose Trailer
Trailer for transporting  a combination  of multiple Canoes, Kayaks, Sailboats & Gear


Trailex Ultra-Light Aluminum Trailers come with  a One Year Limited Warranty.  Almost 50% lighter than steel trailers and they Never Rust



FREE SHIPPING ON TRAILEX SUT SERIES TRAILERS*
*within the 48 USA

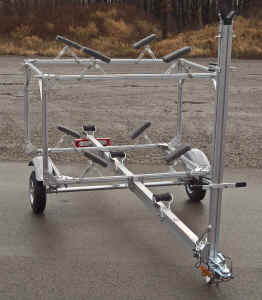

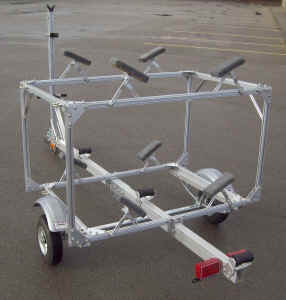

Trailex Model SUT-500-2BC Trailer

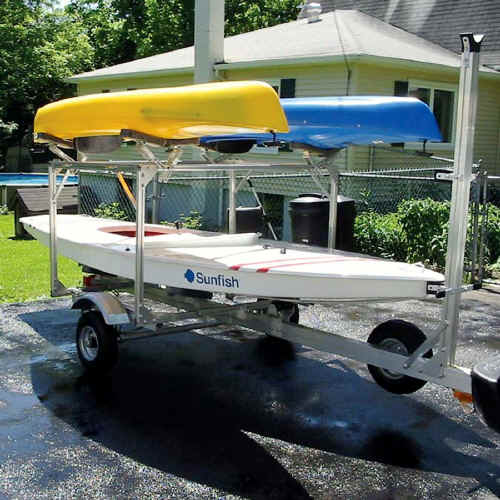

SUT-500-2BC Trailer with Sailboat and canoes
SUT-500-2BC Trailer with Sailboat and Two Canoes
(Sunfish Sailboat and canoes not included)



SUT-500-2BC Trailer  is 2,999.00 +FREE Shipping (48 USA)

Scroll Down the Page  for Details , Available Options Pricing  and Action Videos



View All Trailer Prices
  <CLICK HERE>







SPECIAL OFFER
(offer only valid when ordered with trailer)
Sorry, Offer Does Not Apply to Prior Sales + Limited Time Offer

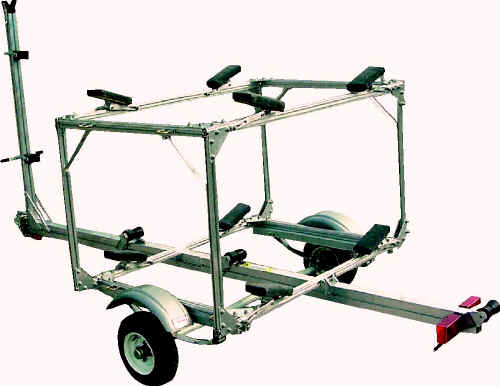

SUT-500-2B Multiple boat trailer
Base Trailer shown for two Sailboats can be easily modified to carry different combinations of Boats, Sailboats, Canoes, Kayaks and Gear.

SHIPS VIA UPS

1.  Dual Sailboat Trailer



Base Model SUT-500-2BC  will carry 2 boats such as Laser, Sunfish, Force 5 Sailboats or similar boats.  Maximum beam of lower boat is 5'-2".  Upper boat can be wider.  Pads are adjustable inward or outward and will swivel flat for carrying boats such as Laser Sailboats upside down.  Has a 60" Mast Stand.  500 lb Capacity.  Trailer is 12' Long and  7' wide.  Can carry 2 small sailboats up to 14'-6" long with a combined weight of 500 lbs



2.  Multiple Canoe,  Kayak Trailer

  You may add Option VPI-BB   Set of 2 Vinyl inserts for  Cross Bars as a separate option.    Protective vinyl padded cross rail  inserts allow  carrying  two canoes or several Kayaks  on  bars without marring.



Selecting Option CCB-BB  Adds Two Center Cross Bars to the Box Rack, which gives you a Center Deck.  Using this configuration can Allow you to Carry up to Eight (8) Kayaks - See Application Notes





Canoes upside down
Two Canoes Carried on top bars -Typical
canoes shown on rack for illustrative purpose



Kayaks upright on top rack
Kayaks can be carried upright on top rack
kayaks shown on rack for illustrative purpose



3.  Combination Sailboat, Canoes. Kayaks,

Add Option EXT-BB to extend tongue length of Trailer to 15'-5" allowing boats up to 18' to be accommodated.



 Kayaks on edge top bar Vertical Post Kit
Kayaks Carried on edge  on top bar - Typical
shown on SUT-250-M Trailer for illustrative purposes
MKP option -Typical
shown on SUT-250-M Trailer



Add Option MKP with two center Vertical Supports for tie down support for multiple kayaks.  The two vertical risers are 33" high and can be positioned at any point along the Top Cross Bars. bars.  This allows up to 4 Kayaks to be carried on their sides on the top of the trailer.  You may add Option VPI-BB   Set of 2 Vinyl  Protective inserts for  Cross Bars as a separate option.



SUT-500-2BC
Trailex SUT-500-2BC Has A Low Profile For Easy Loading Of Top Level



All Aluminum, All Bolted Construction, All Adjustable

Trailer has epoxy coated leaf springs, giving it a carrying capacity of up to 500 lbs.    Since this Trailer is made of aluminum, it is maintenance-free in addition to being strong and lightweight.  This trailer is  easily assembled using only simple tools.



Trailex SUT-500-2BC Two Boat Trailer fits Boats up to 60" Wide on the Lower level (62" actual inside clearance)   - The Double Deck Design handles Multiple Boats, Sailboat, Canoes or Kayaks



Trailex Dual Boat Trailer Comes Standard with the Front Mast Carrier for Sailboats   - The Double Boat Trailer Bunks Adjust to Any Hull Contour, or are removable







SUT-500-2BC
Specifications

Standard Equipment


Capacity:  500 lbs Submersible Taillights
Weight:  190 lbs Safety Chain
Length:   12'-0" * 2 Sets Boat Cradles
Width:  84" High Impact Plastic Fenders
Height:  55" High Speed Demountable-
Inner Height: 34" Between Decks ** Galvanized Wheels & Tires
Inner Width:  62" Inside Width Adjustable Undercarriage
Fore to Aft Spacing : 40" between Crossbars Epoxy Coated Springs
Tires:      16" High
Coupler:  1-7/8"
Electrical: Flat 4 prong

  * Optional 15'5" Length
  **Optional 44" Height





Wheel Size Options
Two wheel and Tire Sizes are available





Standard  is 8.00 X 4.80
  Actual Height is 16"

Large   is 12.00 X 4.80
 Actual Height is 20"







View All Trailer Prices
  <CLICK HERE>



              Optional Extra Equipment

SUT-12 12"  Wheel Upgrade (Large 12.00 X 4.80)

198.00

SPGAL Spare Tire  (Standard 8.00 X 4.80)   69.00
SPGAL-12 Spare Tire  (Large 12.00 X 4.80)

  99.00

STC Spare Tire Carrier   59.00
MKP Top Vertical  33" Supports for Kayaks 119.00
CCB-BB Set of Two Center Cross Bars ( for 3rd Boat Level Transport) **  149.00
VPI-BB Set of 2 Vinyl inserts for  Cross Bars   29.00
EXT-BB Tongue Extension to 15'-5" *** 299.00
HIK-BB Kit to Increase Inside Height to 44" Clearance for larger boats ***** 199.00


** CCB-BB  Adds Two Center Cross Bars to the Box Rack, which gives you a Center Deck.    This allows you to slide in extra boats or Kayaks ( vertical Height allowing)  These are adjustable in Height within the 34" Spacing - An equidistant Position would give you Two 16" High Bays, Plus the Top Bars



*** EXT-BB Tongue Extension to 15'-5" is a longer section of tongue that replaces one of the pre-packed tongue sections* in the SUT-500-2BC package.  However, if you ever wish to shorten the trailer, it can be easily adapted with this extra remaining piece.
*You will have an extra tongue section left over, which is not returnable for credit.



**** 30TPAK  contains 30 each T-Bolts & Locknuts for attaching your options on the trailer.  We do not recommend drilling holes in the aluminum extrusions.  The T-Bolts will slide to any position on any of the extruded parts to allow you to fasten your own options such as  kayak cradles or other items.




***** HIK-BB  Set of 4 each 44"long  corner posts that replace the 4 pre-packed 34" posts*  in the SUT-500-2BC package.  This allows you to add the  CCB-BB center cross bar set and carry two boats with greater depth.   This will give you a 42" inside adjustment range ( such as 21" and 21" or any combination heights) Note - to contact the bow stop on the front mast, the top boat would have to carried upside down ( or a 60" Front Mast Stand is available also.)
*You will have 4 extra posts left over, which is not returnable for credit.





  Bearing Protection System
  Included on Every Trailer

Sure Lube low pressure bearing lubrication system.  Protects bearings and prevents any seal damage.
Easy to use. A Zerk Fitting is located under the axle's end cap. Removing the end cap allows you to use a
small grease gun to lubricate the bearings.
The new grease pushes the old grease out.





Application Information

Top Deck

Will carry a Sailboat  such as Laser, Sunfish, Force 5 Sailboats or similar boats.

Will carry up to two canoes up to 18' in length on top #

Will carry up to four kayaks up to 18' in length on top #
Longer kayaks - use safety flags

Two Kayaks would be carried upright, side by side atop.

Canoes & Kayaks can be mixed or matched.

# Add Option EXT-BB to extend tongue length of Trailer to 15'-5" allowing boats up to 18' to be accommodated.  Standard trailer will handle sailboats to 14'-6"and canoes or kayaks to 16' without option EXT-BB.  Add option VPI-B for Padded top rails.



Lower Deck

 Will carry a Sailboat  such as Laser, Sunfish, Force 5 Sailboats or similar boats.  Maximum beam of lower boat is 5'-0".  Upper boat can be wider.

Adding Saddles will allow you to carry up to 2 Canoes or Kayaks (depending on boat widths) in lower bay.  adding  option VPI-B for Padded rails for Direct Boat Support.


CCB-BB Optional Center Deck Cross Bars

Carry Six (6) Kayaks - Two per Bay

Carry Eight (8) Kayaks Two per Lower Bays - Four on Top with Option MKP

Carry Two (2)Canoes Plus Four (4) Kayaks

 Adding Option CCB-BB  Adds Two Center Cross Bars to the Box Rack, which gives you a Center Deck.   This allows you to slide in extra boats or Kayaks ( vertical Height allowing)  These are adjustable in Height within the 34" Spacing - An equidistant Position would give you Two 16" High Bays, Plus the Top Bar Deck.

 add option VPI-B for Padded Rails for Direct Boat Support.

Add Option MKP with two center Vertical Supports for tie down support for multiple kayaks.  The two vertical risers are 33" high and can be positioned at any point along the Top Cross Bars. bars.  This allows up to 4 Kayaks to be carried on their sides on the top of the trailer.



Assembly Note:  Due to it's many components, this trailer requires more assembly time and skill levels than our other trailers



KS-1 Kayak Saddles can be added to the SUT-500-2BC  Trailer for use either on top or lower deck

Click here for details

           Kayak Saddles for Trailers



Click Here for Frequently Asked Questions



Trailex Trailer Packaged for UPS Shipment

Typical Trailex Trailer Packaged for FedEx Shipment



Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt





See Action Videos
Trailex  Trailer Owners  love to post Videos.  See the Latest Action Videos

CLICK BELOW





Trailex SUT-250M-2 Trailer Video







Trailex SUT-250M-2 Trailer at Paddle Sports Show
















SUT-500-2BC
Assembly Instructions
