FISHERMAN  SERIES
EXPLORER SERIES
JON BOATS
Meyers Aluminum Fishing Boats

Flat Bottom Fishing Boats

Meyers Fisherman 12 Jon Boat
Meyers Fisherman 12 Jon Boat



Scroll Down the Page  for Details & Option's Pricing



Meyers, in business since 1937, produces an extremely durable and attractive line of fishing boats. Using their experience in manufacturing aircraft, Meyers has designed their fleet for rough service. Meyers boat hulls are stretch-formed over a die to  shape the hull halves. These halves are then welded together, forming virtually one piece of metal between you and the water. Oarlocks, drain plug, and bow castings are standard. They feature extruded chines, gunwales, splash rails and keels.  Although all the seams are welded, there are some rivets in the hull - why?  Click here for the answer.  The exterior and interior hulls are painted olive drab.


Meyers Fisher 10 Jon Boat Meyers Fisherman Series Jon Boats are 56" wide at the top gunwales, and 38" wide at the bottom.  This gives great stability, yet they will fit inside a full size pickup truck bed.  3 seats are standard.  18" high gunwales at center.

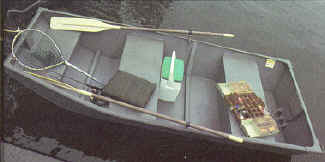

Meyers Fisherman 10 shown

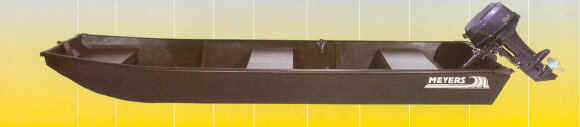

Meyers Fisherman 14 Jon Boat
Meyers Fisherman 14 Jon Boat
motor not included





Meyers Fisherman 14 Jon boat
Meyers Fisherman 14 Jon Boat
motor not included



Meyers Fisherman 12 Jon  Boat

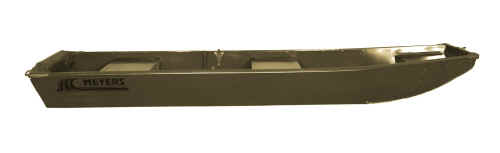

Meyers Fisherman 12 Jon  Boat - Side View
Gunwales are 18" high in the center

Meyers Fisherman 12 Jon  Boat

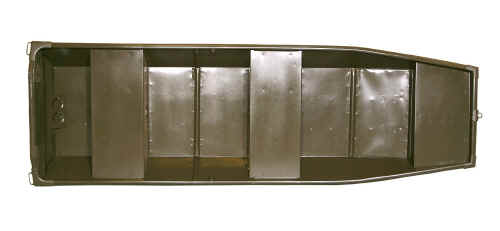

Meyers Fisherman 12 Jon  Boat  - Top View
The  56" wide beam gives it superior stability

Meyers Fisherman 12 Jon  Boat

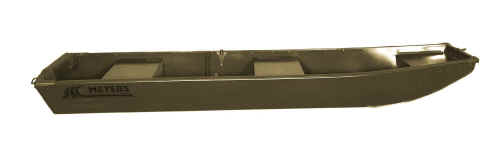

Meyers Fisherman 12 Jon  Boat  - Angle View







Meyers Explorer 12 Jon Boat

Meyers Explorer 12 Jon Boat





Meyers Explorer 12 Jon Boat Meyers Explorer Series Jon Boats are 46" wide at the top gunwales, and 31" wide at the bottom.  They have plenty of room,  yet they will fit inside a small size pickup truck bed.  Explorer models are lighter and narrower than the Fisherman models. 3 seats are standard.  14.5" high gunwales at center.

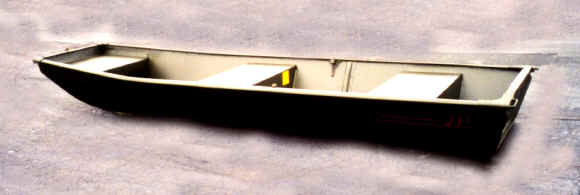

Explorer 12 shown



Meyers Explorer 12 Jon Boat

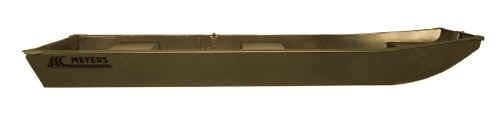

Meyers Explorer 12 Jon  Boat - Side View
Gunwales are 14.5" high in the center

Meyers Explorer 12 Jon Boat

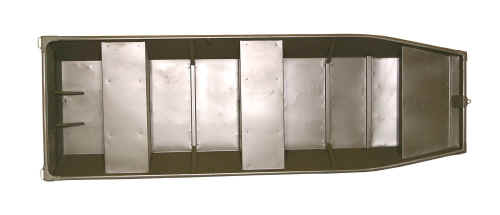

Meyers Explorer 12 Jon  Boat  - Top View
The narrower 46" beam lets it fit in small pickup truck beds

Meyers Explorer 12 Jon Boat

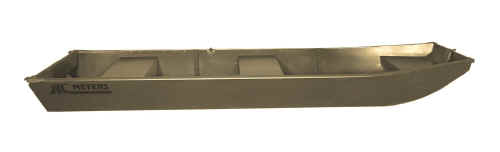

Meyers Explorer 12 Jon  Boat  - Angle View







Meyers Aluminum
Jon Boats

MODEL

LENGTH

BEAM
TOP

DEPTH
CENTER
TRANSOM WIDTH/HEIGHT

WEIGHT

HULL

CAPACITY

HP

FISHERMAN 10

10'-0"

56"

18" 56" x 15"  116 LB

.050

350 LB

5

FISHERMAN 12

12'-0"

56"

18" 56" x 15"

133 LB

.050

500 LB

10

FISHERMAN 14 14'-0" 56" 18" 56" x 15"  144 LB .050 630 LB 10
EXPLORER 10 10-0" 46" 14.5" 46" x 14.5" 80 LB .040 325 LB 3
EXPLORER 12 11'-6" 46" 14.5" 46 x 14.5" 90 LB .040 390 LB 3





PRICES

Fisherman 10 1608.00       + Shipping & Handling
Fisherman 12 1760.00       + Shipping & Handling
Fisherman 14 1906.00       + Shipping & Handling
Explorer 10 1236.00       + Shipping & Handling
Explorer 12 1368.00       + Shipping & Handling



OPTIONS

BR-2 Oars, aluminum/plastic (set) na
CL-2 Clamp-on oarlocks for  BR-2 na
LV-3 Class III  Life Vest na

Oars are aluminum shaft with plastic blade.     CL-2 clamp-on oarlocks are required for BR-2.





Class III Life Vest



Optional class III Life Vest   Optional  Oar set


Applications:

Fisherman Series give you maximum stability and greater capacity

Explorer series give you light weight and ease of transport
